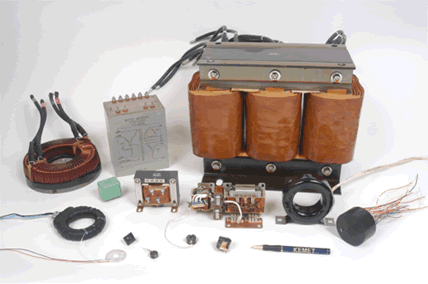

Transformer Types
- High Reactance
- Inverter
- Military Specification
- Power
- Pulse
- Three-phase
- Toroids
Transformer Construction
- Encapsulated or conformal coating
- Hermetically sealed
- Open
- Unsealed enclosures
| Coils
- Bobbin wound
- Layer wound
- Toroidal wound
Cores
- Cut cores
- Distributed gap
- Laminated cores
- Molded ceramic cores
- Three Phase EI laminations
- Wound cores
|  |
| NOTE: UL Listed insulation systems from Class A through R. |  |
EMI Suppression
Beads, Snap-On, Unwound Toroid, Wound Toroid
High Frequency Inductors
>1MHz, < 1 Amp, <1 mH Primarily SMT
Low Frequency Inductors
<1MHz, > 1 Amp, >1 mH, Primarily Wound
Small Power Transformers
Coils and Chokes
|
